Quite a few people have asked if they can study the lines of the boat I'm building. So here's the necessary information in various formats as shown in the table below. I just have to add the usual caveat that what you do with this information is your own responsibility.

  'A'
Andrews
'M'
My interpretation
'S'
~ Selway
.hul's Aslip.hul Mslip.hul
.dxf's Aslip.dxf Mslip.dxf
panel.dxf's Aslippanels.dxf Mslippanels.dxf
.wrl's Aslip.wrl Mslip.wrl Sslip.wrl

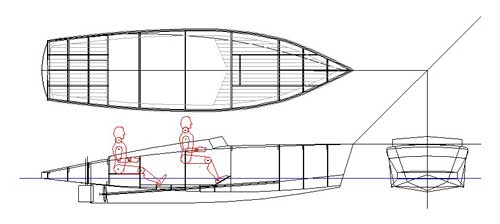

The general layout currently looks like this and the downloadable .zip contains the TurboCad drawing file.

click to download

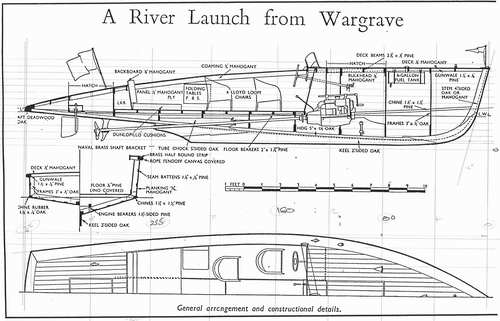

This picture was sent to me, I don't know it's origin but it appears representative of the type and is full of useful detail.

click to download

The following thumbnails were taken in Colin's workshop and are of a long slipper launch, ~30'+.

click to download click to download click to download
click to download
