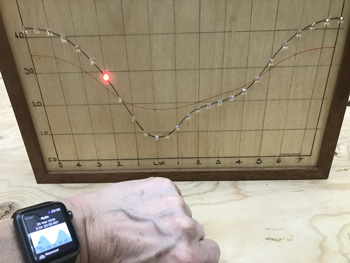

Internet based Tide Clock

/*
 * Tide Clock project
 * M Williams
 * 19/3/2018
 * v3.0 checks out the "Get Unix time" UPD request of v2.6
 * Code Plaigurised from;
 * updated for the ESP8266 12 Apr 2015
 * by Ivan Grokhotkov
 * the european NTP pool list can be found http://www.pool.ntp.org/zone/europe
 *
 * v3.01
 * 20/3/2018
 * Polls the european pool for the nearest available server and return its IP address
 *
 * v3.02
 * 20/3/2018
 * Change to WiFiMulti
 * this allows a choice of ssid's depending on availablity
 *
 * v4.00
 * 22/3/2018
 * Add in the LED test sequence
 * Add call to WorldTidesAdd ParseJson at a basic level to simply identify the 'Station'
 *
 * v4.01
 * 24/3/2018
 * Expand the ParseJson to level of Ethernet shiled v2.60
 *
 * v4.10
 * 24/3/2018
 * Add the resr of the code from v2.6 the Ethernet version
 * Program flow;
 * SETUP
 *  On power up test LEDs
 *  Start Wifi
 *  Initialise UDP
 *  Call tides API
 *  Parse the JSON of tide information into 0-6 tide periods with start time, LOw/HIGH & tide height (not currently used)
 * MAIN
 *  Get Unix time from the internet
 *  Determine which tide period the current unix time sits in the Worldtides parsed JSON. On first pass this should be tide perion (0)
 *  If curent Epoch time is in tide period 6 (the last one) then a New API call is required (every 1.5 days at 4 tides per day)
 *  If the 'New API' flag is set TRUE then a new API call is made, returning JSON is parsed, and current tide period is determined
 *  Work out which lamp to light depending on whether our tide period starts at HIGH tide (0-10) or LOW tide (10-25)
 *  Light that lamp
 *  Wait 5 mins
 * LOOP
 *
 *  v5.00
 *  3/4/2018
 *  Using v4.10 as a base move to a UDP call every 12 hours rather than 5 mins and use millis() to run an internal clock
 *  Program flow
 *  SETUP
 *    On Power Up test LEDS
 *    Start WiFi
 *    Initialise UDP
 *    Call Tide API
 *    Parse Tides JSON
 *    Get Unix time
 *    Set internal clock of the time.h libary such that now() become the current epoch time
 *  MAIN
 *    Determine with tide period the current time sits within
 *    If curent Epoch time is in tide period 6 (the last one) then a New API call is required (every 1.5 days at 4 tides per day)
 *    If the 'New API' flag is set TRUE then a new API call is made, returning JSON is parsed, and current tide period is determined
 *    Work out which lamp to light (if the lamp fraction is > 0.5 flash the lamp otherwise light solid. lampFlashState flag required.
 *    Light the lamp depending on LampFlashState flag
 *    Check if we need to make another UDP call to sync the internal clock (3 hours since the last one)
 *    Wait 5 mins (look at ESP8266 sleep options)
 *  LOOP
 *
 *  v5.01
 *  15/4/2018
 *    Revise look to simplify;
 *    Make API call if requireed then whatever selecttidePeriod(now())
 *
 *  v5.10
 *  15/4/2018
 *    In previous versions 0-0.5 lights prior lamp and 0.51-1.00 lights next lamp
 *    But when a lampo is lit are we are aproaching that point of have we passed it?
 *    Better we differentiate between approaching a lamp and having passed a lamp.
 *    Flash lamp we are approaching, so interLampFraction between 0.51 and 1.00 set ledFlash to true
 *    lamp we are passed is solid, so interLampFraction between 0.0 and 0.50 set ledflash to false
 *
 *  v5.11
 *  30/4/2018
 *    Occulting light for pre lamp and solid for post lamp
 *    Flashing lamp for error; not tide state or now() time before period[0]
 *
 * Pins used
 * D0   Red LED (LOW = Bootloading)
 * D2   Blue LED
 * D4   SDA
 * D5   SCL
 * D12  SPI MISO - Data Pin  (LV1)  SER   chip pin14 on 74HC595 (HV1)
 * D13  SPI MOSI - Latch Pin (LV2)  RCLK  chip pin12 on 74HC595 (HV2)
 * D14  SPI SCK  - Clock pin (LV3)  SRCLK chip pin11 on 74HC595 (HV3)
 * D15  Pull Down (Boot Mode Detect)
 * D16  Can be used to wake from Deep Sleep
 * A0 Battery voltage (against 5v ref) maybe a later addition to tel you to change the battery (Max 1v)
 */

 /*
  * Debug print statements
  */
#define DEBUG                           / Comment out when not in DEBUG mode
#ifdef DEBUG
  #define DEBUG_PRINT(x) Serial.print(x)
  #define DEBUG_PRINTLN(x) Serial.println(x)
  #define DEBUG_PRINTDP(x,y) Serial.print(x,y)
  #define DEBUG_PRINTLNDP(x,y) Serial.println(x,y)
#else
  #define DEBUG_PRINT(x)
  #define DEBUG_PRINTLN(x)
  #define DEBUG_PRINTDP(x,y)
  #define DEBUG_PRINTLNDP(x,y)
#endif
/*
 * Libraries
 */
#include
#include
#include
#include

/*
 * Variables
 * set up lamp pattern
 * B00000000 00000000 00000000 00000001
 * B00000000 00000000 00000000 00000010
 * etc all as long numbers
 * shift out 8 bits sequentially of the 4 byte long to set lamp sequence
 * All on would be 67108863 (3 FF FF FF)
 * Even (0,2,4...) would be 44739242
 * Odd (1,3,5....) would be 33554432
 */
const unsigned long lampPattern[]= {1,2,4,8,16,32,64,128,256,512,1024,2048,4096,8192,16384,
32768,65536,131072,262144,524288,1048576,2097152,4194304,8388608,16777216,33554432};       // 26 values since there are 26 LEDS (0-25)
const int SERIAL_OUT   = 12;                              // Serial Data to the shift registers Pin 14 on 74HC595
const int LATCH        = 13;                              // Latch Pin (ST_CP) pin 12 on 74HC595
const int CLK          = 14;                              // Clock Pin (SH_CP) pin 11 on &$HC595
const char ssid1[]     = "yourssid";
const char password1[] = "yourpassword";		  // min 8 chars
const char ssid2[]     = "********";
const char password2[] = "********";
const char ssid3[]     = "********";
const char password3[] = "********";
const char ssid4[]     = "********";
const char password4[] = "********";
const char ssid5[]     = "********";
const char password5[] = "********";
//char timeServer[] = "time.nist.gov";                  // time.nist.gov NTP server
//char timeServer[] = "uk.pool.ntp.org";                // uk.pool.ntp.org NTP server
const char timeServer[] = "pool.ntp.org";               //  NTP server Pool
const unsigned int localPort = 8888;                    // local port to listen for UDP packets
const int NTP_PACKET_SIZE = 48;                         // NTP time stamp is in the first 48 bytes of the message
byte packetBuffer[ NTP_PACKET_SIZE];                    // buffer to hold incoming and outgoing packets
unsigned long epoch;                                    // epoch time from internet
int lamp;                                               // lamp to light (0-19)
char tideState[7];                                      // tide state at this time
long int tideEpochTime[7];                              // tide time converted from JSON string
float tideHeight[7];                                    // tide height converted from JSON string
bool apiCallRequired = false;                           // api call not required first pass which is done in setup
byte period;                                            // tide period 0-6
bool ledFlash = false;                                  // 0-0.5 false and 0.51-1.0 true (true == flash)
bool noTideState = false;                               // failed to parse JSON
bool nowTooEarly = false;                               // time too early for parseds JSON

WiFiUDP Udp;                           // A UDP instance to let us send and receive packets over UDP
IPAddress timeServerIP;                // pool.ntp.org NTP server address
ESP8266WiFiMulti wifiMulti;            // Create an instance of the ESP8266WiFiMulti class
WiFiClient client;                     // Use WiFiClient class to create TCP connections
/*****************************************************************************************
 * SETUP code
 *****************************************************************************************/
void setup()
 {
  Serial.begin(115200);
  pinMode (SERIAL_OUT, OUTPUT);
  pinMode (LATCH, OUTPUT);
  pinMode (CLK, OUTPUT);
  ledTestSequence();
  startWiFi();                         // Connect to WiFi subroutine
  startUdp();                          // initialise UDP
  hitTidesApi();                       // before program starts call tides API and return JSON
  parseJSON();                         // now parse the JSON returned by WorldTides
  setSyncProvider(getUnixTime);        // Tell TimeLib what function returns epoch time
  setSyncInterval(10800);              // Set sync interval to 3hrs
  while(timeStatus() == timeNotSet);   // wait until time is set by the sync provider
 }
/*****************************************************************************************
 * LOOP code
 *****************************************************************************************/
void loop()                            // We've already made a call to Worldtides and Parsed the JSON
 {                                     // Now we have to check if the currrent time for which we want to light an led is within the dataset
  if(apiCallRequired)                  // Basically is dataset still valid; are we within its time frame
   {                                   // apiCallRequired will be set true if dataset is no lomger vaild
    hitTidesApi();                     // get a new tides JSON with an API call
    parseJSON();                       // now parse the JSON returned by WorldTides
    apiCallRequired = false;           // Reset API call flag
   }
  selectTidePeriod(now());             // find which period the current epoch time sits in
  DEBUG_PRINT(F("now() Epoch time = "));  // to distinguish from setSyncInterval calls
  DEBUG_PRINTLN(now());
  whichLampToLight(now());             // should return a number between 0 and 25
  printLampPattern(lamp);              // visual debug to Serial Monitor
// check if need to flash the lamp
// Allow the flash to be the delay as we dont UDP every loop but use now()
// Flashing lamp should be occulting try 2.5s on 0.84s off unless error code then flash alternate lamps.
  if (!ledFlash)
  {
  	lightLamp(lamp);
  	delay(10000);						// delay 10s before looping
  	DEBUG_PRINTLN(F("10s"));
  }
  else
  {
  flashLamp();              // this will flash lamp and do error code
  }
}                           // Loop back and get next current time

 /********************************************************
  * this subroutine connects to one of a series of ssid's
  ********************************************************/
 void startWiFi() {
  WiFi.mode(WIFI_STA);                 // Set the ESP2866 to be a WiFi client (not an Access Point)
  wifiMulti.addAP(ssid1, password1);   // add Wi-Fi networks you want to connect to
  wifiMulti.addAP(ssid2, password2);
  wifiMulti.addAP(ssid3, password3);
  wifiMulti.addAP(ssid4, password4);
  wifiMulti.addAP(ssid5, password5);

  DEBUG_PRINTLN("Connecting");
  while (wifiMulti.run() != WL_CONNECTED) {  // Wait for the Wi-Fi to connect
   delay(500);
   DEBUG_PRINT('.');
  }
  DEBUG_PRINTLN();
  DEBUG_PRINT("Connected to ");
  DEBUG_PRINTLN(WiFi.SSID());             // Tell us what network we're connected to
  DEBUG_PRINT("IP address:\t");
  DEBUG_PRINTLN(WiFi.localIP());            // Send the IP address of the ESP8266 to the computer
}
/*******************************************************
 * this subroutine initialises the WiFi UDP
 *******************************************************/
void startUdp()
 {
  DEBUG_PRINTLN("Starting UDP");
  Udp.begin(localPort);                // Initializes the WiFi UDP library and network settings. Starts WiFiUDP socket, listening at local port PORT
  DEBUG_PRINT("Local port: ");
  DEBUG_PRINTLN(Udp.localPort());
 }
/*
 * this routine requests and returns the current Epoch time
 */
time_t getUnixTime()
{
 WiFi.hostByName(timeServer, timeServerIP);                                    //get a random server from the pool
 sendNTPpacket(timeServerIP);                                                  // send an NTP packet to a time server
 delay(1000);                                                                  // wait to see if a reply is available
 if (Udp.parsePacket())
  {
    Udp.read(packetBuffer, NTP_PACKET_SIZE);                                    // read the packet into the buffer
    unsigned long highWord = word(packetBuffer[40], packetBuffer[41]);          // the timestamp starts at byte 40 of the received packet and is four bytes
    unsigned long lowWord = word(packetBuffer[42], packetBuffer[43]);           // Extract the two words:
    unsigned long secsSince1900 = highWord << 16 | lowWord;                     // combine the four bytes (two words) into a long integer of NTP time from 1/1/1970
    const unsigned long seventyYears = 2208988800UL;                            // Unix time starts on Jan 1 1970. In seconds, that's 2208988800:
    epoch = secsSince1900 - seventyYears;                                       // subtract seventy years:
    DEBUG_PRINT(F("Unix Epoch time = "));
    DEBUG_PRINTLN(epoch);                                                       // print Unix time
    return epoch;
  }
}
/*******************************************************************************
 * This routine sets up the NTP packet in order to request the current Epoc time
 *******************************************************************************/
void sendNTPpacket(IPAddress& address)                                               // send an NTP request to the time server at the given address
{
  memset(packetBuffer, 0, NTP_PACKET_SIZE);                                     // set all bytes in the buffer to 0
  /*
   * Initialize values needed to form NTP request
   * (see URL above for details on the packets)
   */
  packetBuffer[0] = 0b11100011;                           // LI, Version, Mode
  packetBuffer[1] = 0;                                    // Stratum, or type of clock
  packetBuffer[2] = 6;                                    // Polling Interval
  packetBuffer[3] = 0xEC;                                 // Peer Clock Precision
                                                          // packetBuffer[4]-[11] are 8 bytes of zero for Root Delay & Root Dispersion
  packetBuffer[12]  = 49;
  packetBuffer[13]  = 0x4E;
  packetBuffer[14]  = 49;
  packetBuffer[15]  = 52;
  /*
   * all NTP fields have been given values, now
   * we can send a packet requesting a timestamp:
   */
  Udp.beginPacket(address, 123);                          //NTP requests are to port 123
  Udp.write(packetBuffer, NTP_PACKET_SIZE);
  Udp.endPacket();
}
/*******************************************************
 * Test the LEDS before starting WiFi and UDP
 *******************************************************/
 void ledTestSequence()
 {
  clearAllLamps();
  delay(1000);
  lightAllLamps();
  delay(2000);
  clearAllLamps();
  loopLeds();
  clearAllLamps();
 }
/*******************************************************
 * Routine to clear lamps
 *******************************************************/
void clearAllLamps()
 {
  digitalWrite (LATCH, LOW);                        // hide pattern
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B00000000);  // 25-32 LED's OFF
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B00000000);  // 17-24 LEDs OFF
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B00000000);  // 9-16 LEDs OFF
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B00000000);  // 1-8 LEDs OFF
  digitalWrite(LATCH, HIGH);                        // Show Pattern
 }
 /*******************************************************
  * Routine to light all the lamps
  *******************************************************/
void lightAllLamps()
 {
  digitalWrite (LATCH, LOW);                        // hide pattern
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B00000011);  // 25-32 LED's ON
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B11111111);  // 17-24 LEDs ON
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B11111111);  // 9-16 LEDs ON
  shiftOut (SERIAL_OUT, CLK, MSBFIRST, B11111111);  // 1-8 LEDs ON
  digitalWrite(LATCH, HIGH);                        // Show Pattern
 }
 /*******************************************************
 * Routine to light a specific lamp lamp
 ********************************************************/
void lightLamp(int led)
 {
  unsigned long bin = lampPattern[led];             // transfer const lampPattern value to bin as temp store we can bit shift
  digitalWrite (LATCH, LOW);                        // hide pattern
  shiftOut(SERIAL_OUT, CLK, MSBFIRST, bin>>24);     // send most significant 8 bits
  shiftOut(SERIAL_OUT, CLK, MSBFIRST, bin>>16);     // send next 8 bits
  shiftOut(SERIAL_OUT, CLK, MSBFIRST, bin>>8);      // send next 8 bits
  shiftOut(SERIAL_OUT, CLK, MSBFIRST, bin);         // send least significant 8 bits
  digitalWrite(LATCH, HIGH);                        // Show Pattern
 }
 /*******************************************************
 * LEDs test routine
 * Lights each lamp in sequence
 ********************************************************/
void loopLeds()
{
  for ( byte i = 0; i < 26; i++)
    {
      lightLamp(i);
      delay(100);
    }
}
/*******************************************************
 * This routine requests the Worldtides API JSON
 *******************************************************/
void hitTidesApi()
{
 if (client.connect("http://www.worldtides.info", 80))               // By default HTTP uses Port 80 and HTTPs uses Port 443
  {
    DEBUG_PRINTLN(F("Sending API request to WorldTides"));
    client.println("GET http://www.worldtides.info/api?extremes&datum=lat&length86400&lat=50.7628&lon=-1.3005&key=yourkeyhere");
    client.println();
  }
    else
  {
    DEBUG_PRINTLN(F("Connection to WorldTides failed"));
  }
  delay(2500);                                                      // delay was increased from 500ms for slow mobile connections as JSON not returning in time
}
/************************************************************************
 * Parses the return from sending the Worldtides API
 *
 * typical reply
 * Station = Ryde
 * Tide Period 0 starting Epoch = 1521884790 Height = 1.023 State  = L
 * Tide Period 1 starting Epoch = 1521909372 Height = 3.638 State  = H
 * Tide Period 2 starting Epoch = 1521930308 Height = 1.161 State  = L
 * Tide Period 3 starting Epoch = 1521954439 Height = 3.560 State  = H
 * Tide Period 4 starting Epoch = 1521976514 Height = 1.177 State  = L
 * Tide Period 5 starting Epoch = 1522000083 Height = 3.454 State  = H
 * Tide Period 6 starting Epoch = 1522030083 Height = 1.177 State  = L
 *
 ************************************************************************/
void parseJSON()
{
 DEBUG_PRINTLN(F("Parsing JSON"));
 String tideTimeStr[7];                                  // time of each high or low tide as a string
 String tideHeightStr[7];                                // tide height at this state (not currently used)
 String tideStateStr[7];                                 // tide state at this time

 while(client.available())
  {
    if(client.findUntil("station\":\"", "\n\r"))
      {
        String station = client.readStringUntil('"');
        Serial.print(F("Station = "));
        Serial.println(station);
      }

    for (int i = 0 ; i < 7 ; i++)                               // 6 tide periods in each API call
      {                                                         // Acquire time, height, type (high or low)
        if(client.findUntil("dt\":", "\n\r"))                   // adding this if statements stops it continuing when all periods are discovered
          {
              tideTimeStr[i] = client.readStringUntil(',');     // Tide time as Epoch time
              DEBUG_PRINT(F("Tide Period "));
              DEBUG_PRINT(i);
              DEBUG_PRINT(F(" starting Epoch = "));
              tideEpochTime[i] = tideTimeStr[i].toInt();        // convert time string to integer
              DEBUG_PRINT(tideEpochTime[i]);

              client.findUntil("height\":", "\n\r");            // Tide height in M
              tideHeightStr[i] = client.readStringUntil(',');
              DEBUG_PRINT(F(" Height = "));
              tideHeight[i] = tideHeightStr[i].toFloat();       // convert tide height to a float
              DEBUG_PRINTDP(tideHeight[i],3);

              client.findUntil("type\":\"", "\n\r");           // Tide type; High or Low
              tideStateStr[i] = client.readStringUntil('"');
              tideState[i] = tideStateStr[i].charAt(0);        // extract the first letter of the tide state
              DEBUG_PRINT(F(" State "));
              DEBUG_PRINT(F(" = "));
              DEBUG_PRINTLN(tideState[i]);                    // should be 'H' or 'L'
            }
       }
  }
  DEBUG_PRINTLN(F(""));
client.stop();
}
/***********************************************************************
 * This routine works out which tide period applies to the current time
 ***********************************************************************/
 void selectTidePeriod(unsigned long currentTime)
 {
  if(currentTime > tideEpochTime[6])                 // if current time is in the final tide period as we have no end time (tideEpochTime[7])
  {                                                  // to use to determine our position within the final tide period so new API call is required
    apiCallRequired = true;                          // so set flag to request another API call
    DEBUG_PRINTLN(F("New API Call required"));
    return;                                          // exit the routine in order to make that API call
  }
  if(currentTime > tideEpochTime[5])                 // all good we can use tideEpochtime[6] to determine how far through the tide period we are
  {
    period = 5;
    DEBUG_PRINT(F("Period = "));
    DEBUG_PRINTLN(period);
    return;
  }
  if(currentTime > tideEpochTime[4])
  {
    period = 4;
    DEBUG_PRINT(F("Period = "));
    DEBUG_PRINTLN(period);
    return;
  }
  if(currentTime > tideEpochTime[3])
  {
    period = 3;
    DEBUG_PRINT(F("Period = "));
    DEBUG_PRINTLN(period);
    return;
  }
  if(currentTime > tideEpochTime[2])
  {
    period = 2;
    DEBUG_PRINT(F("Period = "));
    DEBUG_PRINTLN(period);
    return;
  }
  if(currentTime > tideEpochTime[1])
  {
    period = 1;
    DEBUG_PRINT(F("Period = "));
    DEBUG_PRINTLN(period);
    return;
  }
  if(currentTime > tideEpochTime[0])
  {
    period = 0;
    DEBUG_PRINT(F("Period = "));
    DEBUG_PRINTLN(period);
    return;
  }
  if(currentTime < tideEpochTime[0])                 // our first tide period starts after the current time we have a problem with the returned API
    nowTooEarly = true;                              // set too early flag
    DEBUG_PRINT(F("Too Early"));
    return;
}
/*************************************************************************************************************
 * routine to decide which lamp to light
 * the first thing to decide is whether its a high to low tide, lamps 0-10 or low to high tide, lamps 10-25
 * there are 24 lamps total 12 for high to low and 12 for low to high so every 32 mins in effect
 *************************************************************************************************************/
void whichLampToLight(unsigned long currentTime)
{
  if(nowTooEarly)                           // now() time is before the start of period 0
    {
      ledFlash = true;						          // set flag to flash led 0 and 1 alternating
      DEBUG_PRINT(F("Time before period 0 so flash lamp 0 and lamp 1"));
      return;
    }
  // as we are in 'period' start working out where we are within the period

  float timeIntoTidePeriod = float(currentTime - tideEpochTime[period]);
  float lengthOfTidePeriod = float(tideEpochTime[period + 1] - tideEpochTime[period]);      // hence we can only use period 0-5
  float tidePeriodFraction =  timeIntoTidePeriod / lengthOfTidePeriod;                      // should return a number between 0 - 0.99

  // now we have the tide fraction (how far through the period we are)
  // we need to decide which lamp to light which depends whether tide period is 'H' to 'L' or 'L' to 'H'
  // should return a number between 0 - 0.99

  if(tideState[period] == 'H')                                              // high to Low therefore lamps 0-10 although 10 is really 0 for low to high section
    {
      DEBUG_PRINT(F("High Tide Fraction = "));
      DEBUG_PRINTLNDP(tidePeriodFraction,3);
      float tideLampFraction = tidePeriodFraction * 10;                     // which lamp 0-10 as a float
      lamp = round(tideLampFraction);                                       // max lamp number is 10 as it rounds up 9.99
      if( tideLampFraction - floor(tideLampFraction) > 0.5 )                // fractional part test
        {
          ledFlash = true;    // set flash flag for approaching lamp
        }
      else
        {
          ledFlash = false;   // set dont flash flag for lamp we have passed
        }
    }
  else if(tideState[period] == 'L')                                         // if not high must be low
    {
      DEBUG_PRINT(F("Low Tide Fraction = "));
      DEBUG_PRINTLNDP(tidePeriodFraction,3);
      float tideLampFraction = tidePeriodFraction * 15 + 10;                // which lamp 10-25 as a float
      lamp = round(tideLampFraction);                                       // max lamp number is 25 as it rounds up 14.9+10 = 24.9
      if( tideLampFraction - floor(tideLampFraction) > 0.5 )                // fractional part test
        {
          ledFlash = true;    // set flash flag for approaching lamp
        }
      else
        {
          ledFlash = false;   // set don't flash flag for lamp we have passed
        }
    }
  else
    {
      DEBUG_PRINTLN(F("No tide state"));    // Error state so flash lamps 24 and 25
      ledFlash = true;                      // set flag to flash led
      noTideState = true;                   // set tide state flag
      apiCallRequired = true;               // so set flag to request another API call
    }
  DEBUG_PRINT(F("light lamp "));
  DEBUG_PRINTLN(lamp);
}
/**********************************************************************
 * Print the lap pattern as 32 bits (4 Bytes)to the Serial Monitor
 **********************************************************************/
void printLampPattern(byte lamp)
{
  DEBUG_PRINTLN(F("H         L              H"));
    for( int i = 0; i < 26; i++)                    // only 25 bits required
    {
      if( bitRead(lampPattern[lamp], i) == 1)
      {
        DEBUG_PRINT(F("1"));
      }
      else
      {
        DEBUG_PRINT(F("0"));
      }
    }
  DEBUG_PRINTLN(F(""));                            // carriage return
}
/***********************************************************************
 * flashLamp() will occult
 ***********************************************************************/
void flashLamp()
{
  if(noTideState)                   // Failed to parse JSON flash lamp 24 and 25 alternately
  {
    for(byte i=0; i<4; i++)         // loop 4 times to give 10s delay before starting main loop again
    {
     lightLamp(24);                 // turn 'lamp' 24 on
     DEBUG_PRINTLN(F("24 ON"));
     delay(1250);
     clearAllLamps();
     DEBUG_PRINTLN(F("24 OFF"));    // turn 'lamp' 24 off
     lightLamp(25);                 // turn 'lamp' 25 on
     DEBUG_PRINTLN(F("25 ON"));
     delay(1250);
     clearAllLamps();
     DEBUG_PRINTLN(F("25 OFF"));   // turn 'lamp' 25 off
    }
    noTideState = false;           // reset flag
    return;
  }
  if(nowTooEarly)                   // now() or UDP time before period[0] starts
  {
    for(byte i=0; i<4; i++)         // loop 4 times to give 10s delay before starting main loop again
    {
     lightLamp(0);                 // turn 'lamp' 24 on
     DEBUG_PRINTLN(F("24 ON"));
     delay(1250);
     clearAllLamps();
     DEBUG_PRINTLN(F("24 OFF"));    // turn 'lamp' off
     lightLamp(1);                 // turn 'lamp' on
     DEBUG_PRINTLN(F("25 ON"));
     delay(1250);
     clearAllLamps();
     DEBUG_PRINTLN(F("25 OFF"));   // turn 'lamp' off

    }
    nowTooEarly = false;           // reset flag
    return;
  }
// not in error (the anticipated state) so occult lamp
for(byte i=0; i<3; i++)            // loop 3 times to give 10s delay before starting main loop again
  {
    lightLamp(lamp);                 // turn 'lamp' on
    DEBUG_PRINTLN(F("2.7s ON"));
    delay(2700);
    clearAllLamps();
    DEBUG_PRINTLN(F("0.7s OFF"));   // turn 'lamp' off
    delay(640);
    }
}

/********************************************************************************
		   For reference API returns
 * {"status":200,"callCount":1,"copyright":"Tidal data retrieved from www.worldtide.info. Copyright (c) 2014-2017 Brainware LLC. Licensed for use of individual spatial coordinates on behalf of\/by an end-user. Copyright (c) 2010-2016 Oregon State University. Licensed for individual spatial coordinates via ModEM-Geophysics Inc. NO GUARANTEES ARE MADE ABOUT THE CORRECTNESS OF THIS DATA. You may not use it if anyone or anything could come to harm as a result of using it (e.g. for navigational purposes).","requestLat":50.7628,"requestLon":-1.3005,"responseLat":50.7333,"responseLon":-1.1667,"atlas":"TPXO_8_v1","station":"Ryde","requestDatum":"LAT","responseDatum":"LAT","extremes":[{"dt":1521884790,"date":"2018-03-24T09:46+0000","height":1.023,"type":"Low"},{"dt":1521909372,"date":"2018-03-24T16:36+0000","height":3.638,"type":"High"},{"dt":1521930308,"date":"2018-03-24T22:25+0000","height":1.161,"type":"Low"},{"dt":1521954439,"date":"2018-03-25T05:07+0000","height":3.56,"type":"High"},{"dt":1521976514,"date":"2018-03-25T11:15+0000","height":1.177,"type":"Low"},{"dt":1522000083,"date":"2018-03-25T17:48+0000","height":3.454,"type":"High"},{"dt":1522022435,"date":"2018-03-26T00:00+0000","height":1.267,"type":"Low"},{"dt":1522045612,"date":"2018-03-26T06:26+0000","height":3.43,"type":"High"}]}
 *
 *Of which the interesting bit is
 *
 *[{"dt":1521884790,"date":"2018-03-24T09:46+0000","height":1.023,"type":"Low"}
 *,
 *{"dt":1521909372,"date":"2018-03-24T16:36+0000","height":3.638,"type":"High"}
 *,
 *{"dt":1521930308,"date":"2018-03-24T22:25+0000","height":1.161,"type":"Low"}
 *,
 *{"dt":1521954439,"date":"2018-03-25T05:07+0000","height":3.56,"type":"High"}
 *,
 *{"dt":1521976514,"date":"2018-03-25T11:15+0000","height":1.177,"type":"Low"}
 *,
 *{"dt":1522000083,"date":"2018-03-25T17:48+0000","height":3.454,"type":"High"}
 *,
 *{"dt":1522022435,"date":"2018-03-26T00:00+0000","height":1.267,"type":"Low"}
 *,
 *{"dt":1522045612,"date":"2018-03-26T06:26+0000","height":3.43,"type":"High"}
 *]
 ********************************************************************************/
